Oxide Ceramics

Alumina, zirconia and silica slurries for photopolymerization 3D printing of high-performance components.

Oxide Ceramics

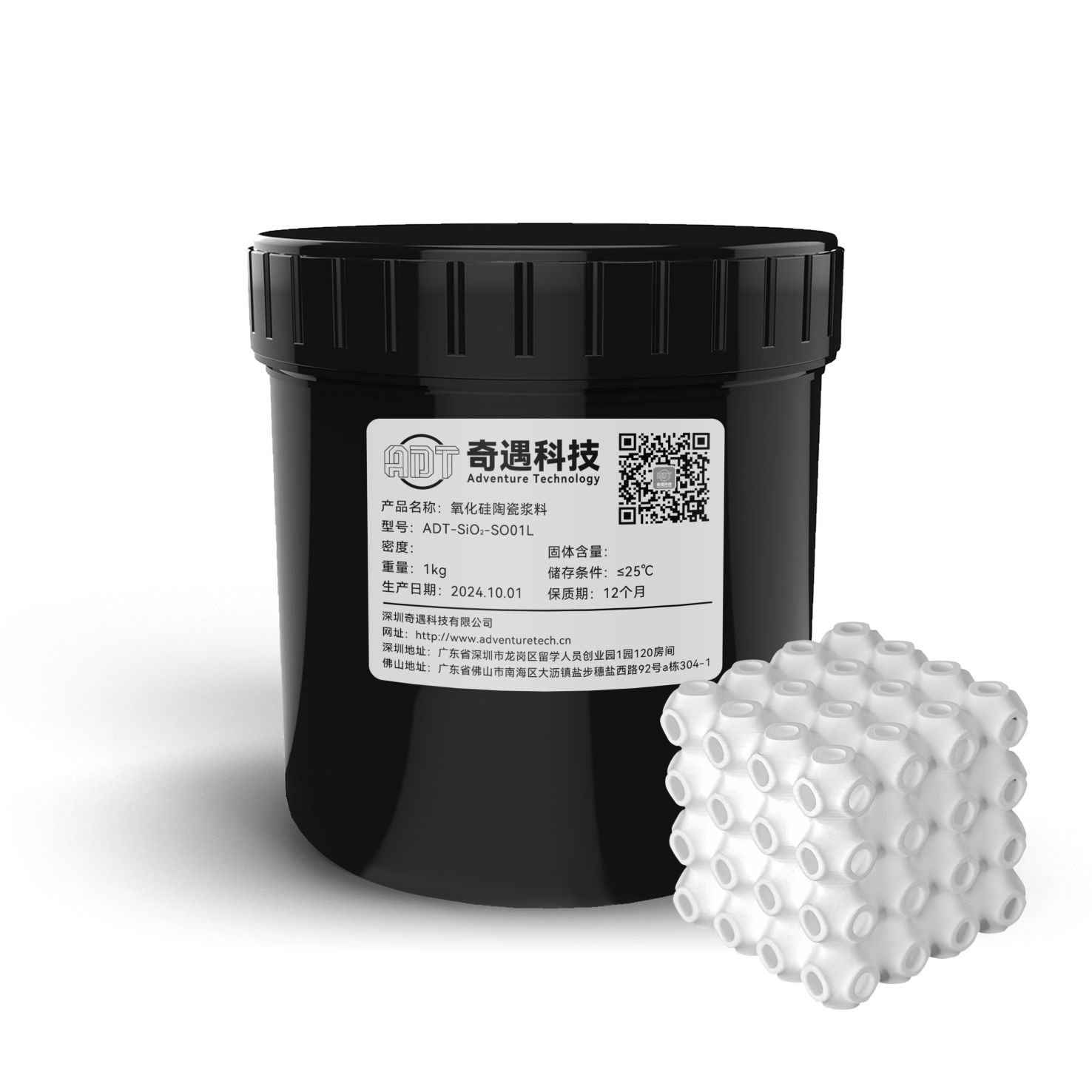

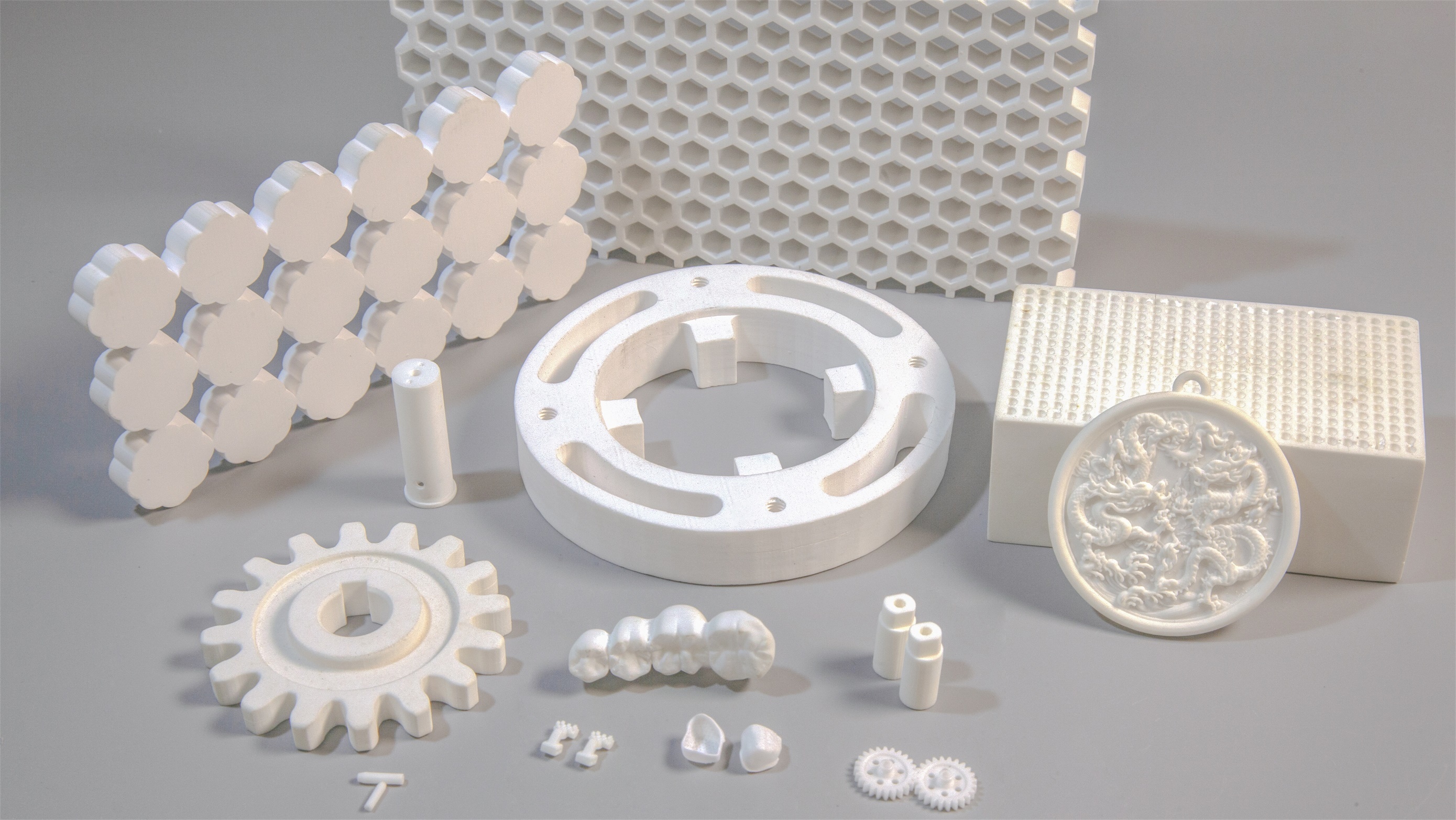

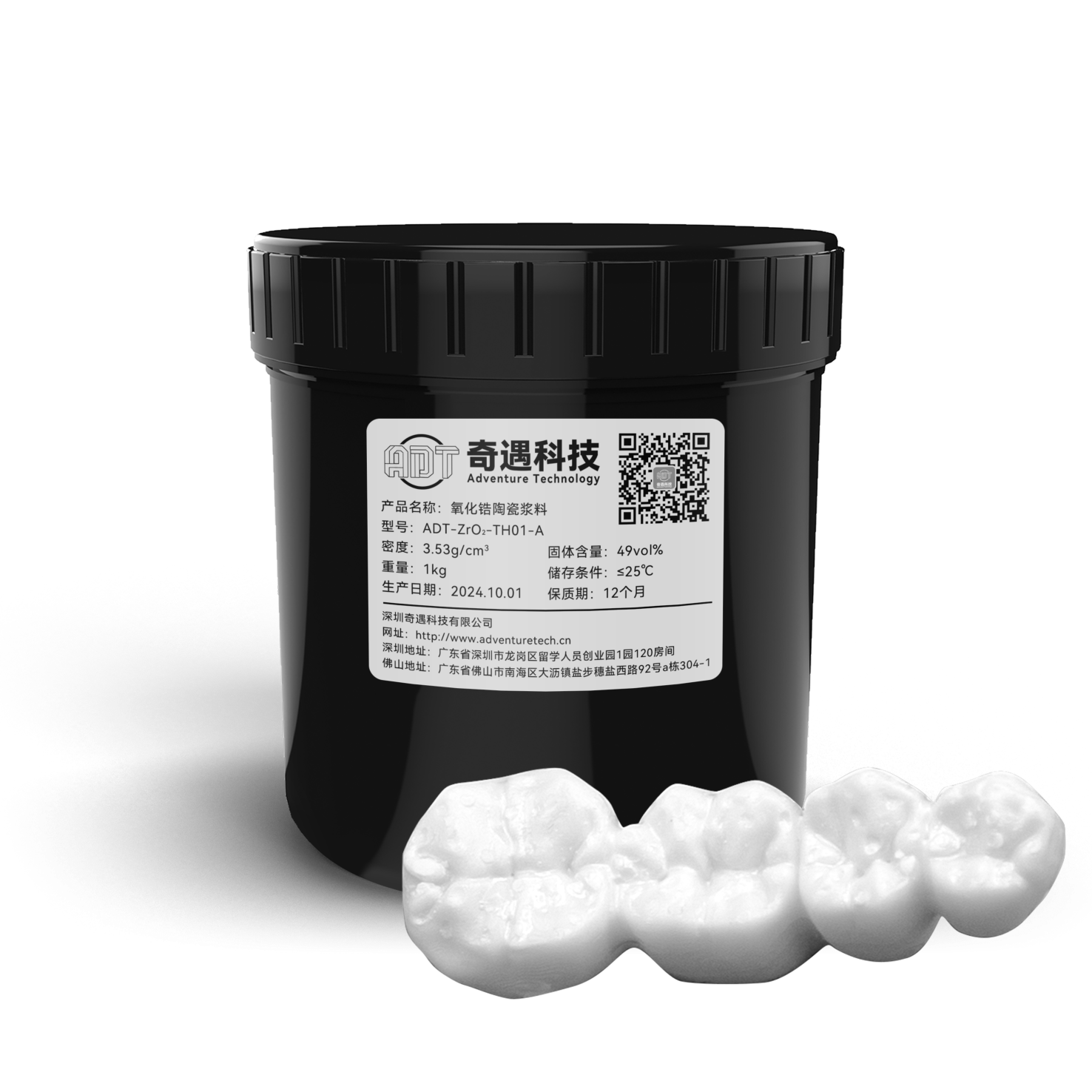

Oxide Ceramics Oxide Ceramics detail 1 Oxide Ceramics detail 2 Oxide Ceramics detail 3

Key Features

  • High-temperature & corrosion resistance: Alumina and zirconia for high-performance components.
  • High precision: Suitable for photopolymerization 3D printing of complex geometries.
  • Proven slurry models: ADT-Al2O3 and ADT-ZrO2 series with relative density up to 99.2%.

Application Areas

Dental Medical College Aviation Ceramics Biology

Application Cases

Printed Oxide Ceramic Parts

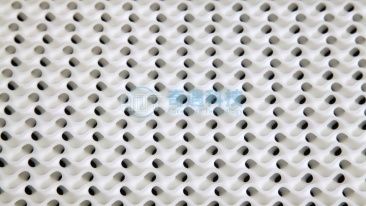

Al₂O₃-G Polyhedron
Al₂O₃-G Polyhedron

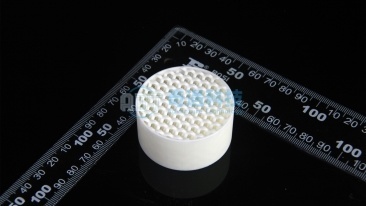

Al₂O₃-Filter
Al₂O₃-Filter

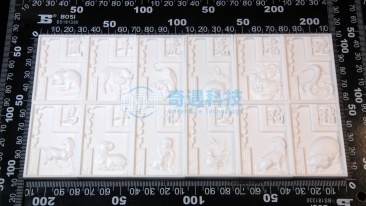

Al₂O₃-Zodiac Plaque
Al₂O₃-Zodiac Plaque

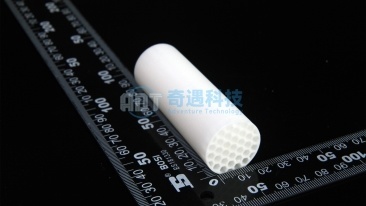

ZrO₂-Honeycomb Cylinder
ZrO₂-Honeycomb Cylinder

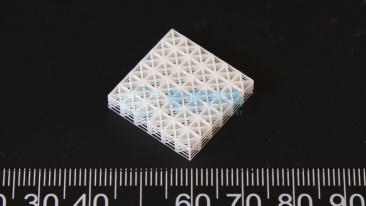

ZrO₂-Lattice
ZrO₂-Lattice

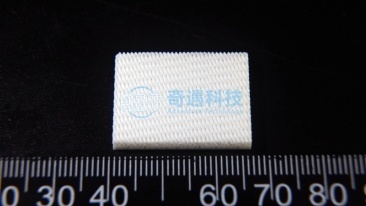

ZrO₂-Gradient
ZrO₂-Gradient

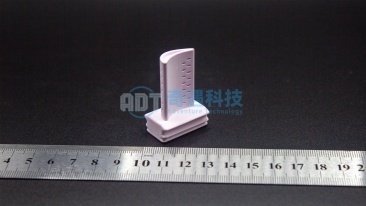

SiO₂-Core
SiO₂-Core

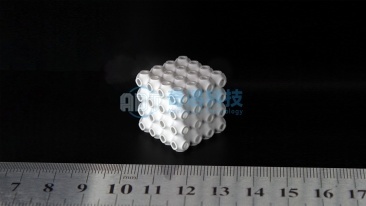

SiO₂-Lattice Hexahedron
SiO₂-Lattice Hexahedron

Material Parameters

Technical Specifications

Alumina Ceramic Slurry

Parameter ADT-Al₂O₃-TH01-X ADT-Al₂O₃-HO01-B ADT-Al₂O₃-TH01-H
Solid Content (wt%)82——
Viscosity (50 s⁻¹) [Pa·s]3.212.265.08
Actual Density [g/cm³]3.763.513.61
Relative Density [%]95.288.996.3
Three-Point Bending Strength [MPa]298——
Surface Roughness Ra [μm]0.750.891.14
Hardness HV101566—1040
Compressive Strength [MPa]632——

Zirconia Ceramic Slurry

Parameter ADT-ZrO₂-ZY06-A ADT-ZrO₂-TH01-A ADT-ZrO₂-HO01-M ADT-ZrO₂-TH01-M
Solid Content (wt%)84———
Viscosity (50 s⁻¹) [Pa·s]6.453.7539.412.8
Actual Density [g/cm³]6.035.975.605.67
Relative Density [%]99.298.298.299.5
Three-Point Bending Strength [MPa]676———
Surface Roughness Ra [μm]0.320.340.820.65
Hardness HV1012391346673—
Compressive Strength [MPa]215212701078882

Related Products

Printers

DLP Ceramic 3D Printer-Standard
DLP

Standard

Learn More →
DLP Ceramic 3D Printer For Laboratory
DLP

Laboratory

Learn More →
DLP Ceramic 3D Printer for Industry
DLP

Industry

Learn More →
DLP Ceramic 3D Printing Equipment
DLP

Equipment

Learn More →
Direct Writing 3D Printer Starter Version
DIW

Starter

Learn More →
Direct Writing 3D Printer Standard Version
DIW

Standard

Learn More →
Direct Writing 3D Printer Plus Version
DIW

Plus

Learn More →
SLA Ceramic 3D Printer
SLA

SLA Ceramic 3D Printer

Learn More →

Related News

News & Insights

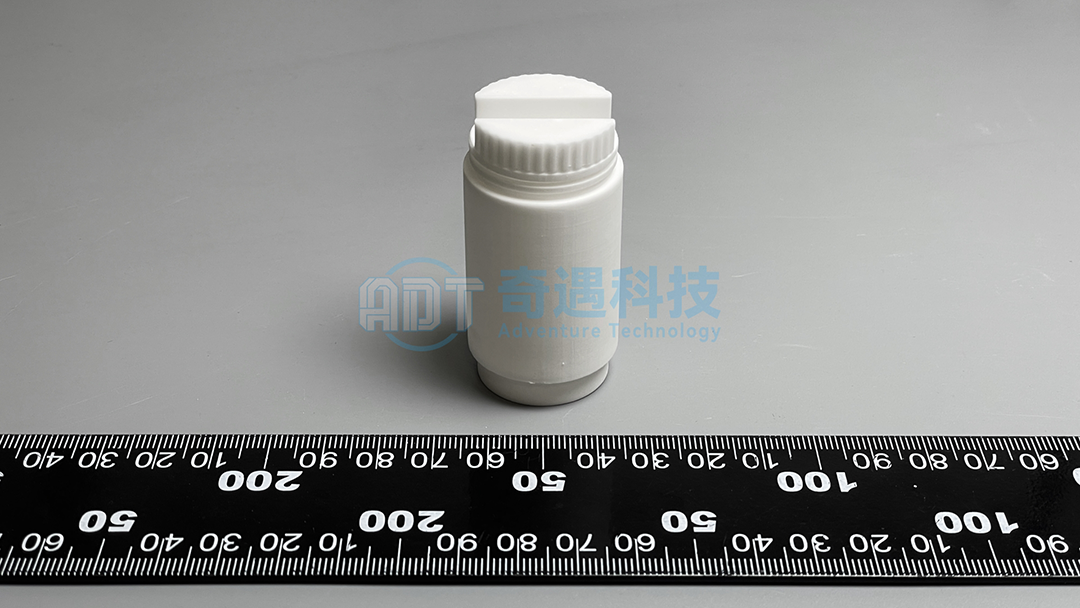

DLP Ceramic 3D Printing of Alumina Pharmaceutical Bottles
Print Case

DLP Ceramic 3D Printing of Alumina Pharmaceutical Bottles: A Technical Case Study

Read More →

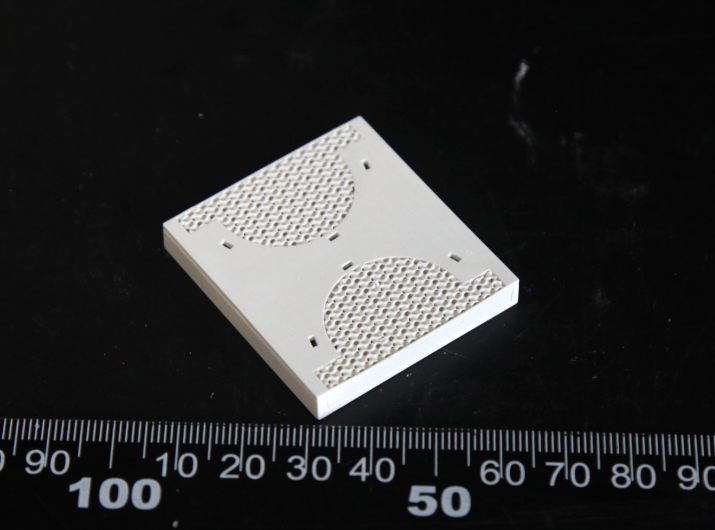

High-Precision Alumina Ceramic Molds Manufactured via DLP 3D Printing
Print Case

High-Precision Alumina Ceramic Molds Manufactured via DLP 3D Printing Technology

Read More →

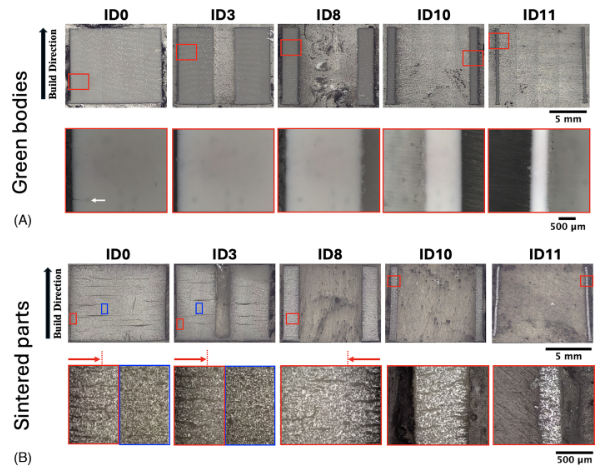

Ceramic Sintering Process
